NYLON MONOFILAMENT LINE

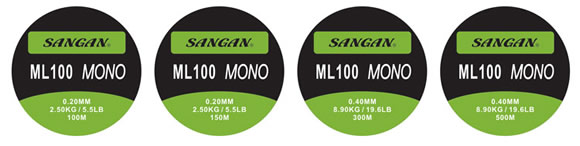

ML100 series

DIAMETER(mm)	TEST(kg)	TEST(lb)	LENGTH(m)	LENGTH(m)	LENGTH(m)	LENGTH(m)
0.165	1.70	3.7	100	150	300	500
0.181	2.00	4.4	100	150	300	500
0.203	2.50	5.5	100	150	300	500
0.234	3.20	7.1	100	150	300	500
0.261	4.00	8.8	100	150	300	500
0.286	4.70	10.4	100	150	300	500
0.309	5.40	11.9	100	150	300	500
0.331	6.10	13.4	100	150	300	500
0.370	7.50	16.5	100	150	300	500
0.405	8.90	19.6	100	150	300	500
0.437	10.20	22.5	100	150	300	500
0.467	11.40	25.1	100	150	300	500
0.496	12.70	28.0	100	150	300	500
0.523	13.90	30.6	100	150	300	500
0.548	15.00	33.1	100	150	300	500
0.573	16.10	35.5	100	150	300	500
0.596	17.50	38.6	100	150	300	500
0.619	18.50	40.8	100	150	300	500
0.640	19.80	43.7	100	150	300	500
0.661	20.80	45.9	100	150	300	500
0.701	23.40	51.6	100	150	300	500
0.739	25.50	56.2	100	150	300	500
0.775	28.10	61.9	100	150	300	500
0.810	30.10	66.4	100	150	300	500
0.843	32.60	71.9	100	150	300	500
0.875	34.50	76.1	100	150	300	500
0.905	36.90	81.3	100	150	300	500
0.950	40.00	88.2	100	150	300	500
1.050	44.00	97.0	100	150	300	500

General pack: 100M/SPOOL, 150M/SPOOL, 300M/SPOOL and 500M/SPOOL.

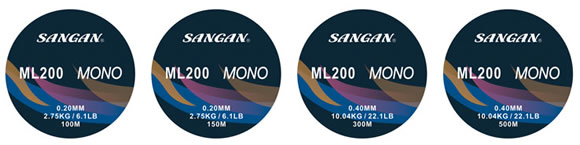

ML200 series

DIAMETER(mm)	TEST(kg)	TEST(lb)	LENGTH(m)	LENGTH(m)	LENGTH(m)	LENGTH(m)
0.128	1.11	2.4	100	150	300	500
0.148	1.48	3.3	100	150	300	500
0.165	1.84	4.1	100	150	300	500
0.181	2.22	4.9	100	150	300	500
0.203	2.75	6.1	100	150	300	500
0.234	3.62	8.0	100	150	300	500
0.261	4.44	9.8	100	150	300	500
0.286	5.27	11.6	100	150	300	500
0.309	6.08	13.4	100	150	300	500
0.331	6.88	15.2	100	150	300	500
0.370	8.49	18.7	100	150	300	500
0.405	10.04	22.1	100	150	300	500
0.437	11.54	25.4	100	150	300	500
0.467	13.00	28.7	100	150	300	500
0.496	14.46	31.9	100	150	300	500
0.523	15.84	34.9	100	150	300	500
0.548	17.17	37.9	100	150	300	500
0.573	18.48	40.7	100	150	300	500
0.596	19.74	43.5	100	150	300	500
0.619	20.98	46.3	100	150	300	500
0.640	22.10	48.7	100	150	300	500
0.661	23.23	51.2	100	150	300	500
0.701	25.73	56.7	100	150	300	500
0.739	28.15	62.1	100	150	300	500
0.775	30.96	68.3	100	150	300	500
0.810	33.29	73.4	100	150	300	500
0.843	36.06	79.5	100	150	300	500
0.875	38.23	84.3	100	150	300	500
0.905	40.90	90.2	100	150	300	500
0.950	44.00	97.0	100	150	300	500
1.050	52.00	114.6	100	150	300	500

General pack: 100M/SPOOL, 150M/SPOOL, 300M/SPOOL and 500M/SPOOL.

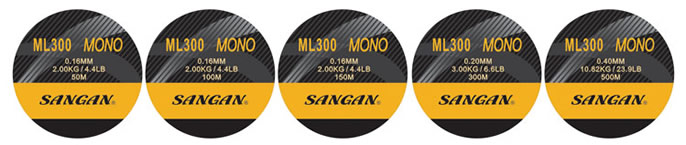

ML300 series

DIAMETER(mm)	TEST(kg)	TEST(lb)	LENGTH(m)	LENGTH(m)	LENGTH(m)	LENGTH(m)	LENGTH(m)
0.074	0.40	0.9	50	100	150	300	500
0.091	0.60	1.3	50	100	150	300	500
0.105	0.80	1.8	50	100	150	300	500
0.128	1.20	2.6	50	100	150	300	500
0.148	1.60	3.5	50	100	150	300	500
0.165	2.00	4.4	50	100	150	300	500
0.181	2.40	5.3	50	100	150	300	500
0.203	3.00	6.6	50	100	150	300	500
0.234	3.78	8.3	50	100	150	300	500
0.261	4.68	10.3	50	100	150	300	500
0.286	5.61	12.4	50	100	150	300	500
0.309	6.55	14.4	50	100	150	300	500
0.331	7.39	16.3	50	100	150	300	500
0.370	9.02	19.9	50	100	150	300	500
0.405	10.82	23.9	50	100	150	300	500
0.437	12.54	27.6	50	100	150	300	500
0.467	14.14	31.2	50	100	150	300	500
0.496	15.90	35.1	50	100	150	300	500
0.523	17.42	38.4	50	100	150	300	500
0.548	18.63	41.1	50	100	150	300	500
0.573	20.33	44.8	50	100	150	300	500
0.596	22.02	48.5	50	100	150	300	500
0.619	23.72	52.3	50	100	150	300	500
0.640	25.41	56.0	50	100	150	300	500
0.700	28.00	61.7	50	100	150	300	500
0.750	31.50	69.4	50	100	150	300	500
0.800	36.00	79.4	50	100	150	300	500
0.843	38.00	83.8	50	100	150	300	500
0.905	44.00	97.0	50	100	150	300	500
0.950	48.00	105.8	50	100	150	300	500
1.050	57.00	125.7	50	100	150	300	500

General pack: 50M/SPOOL, 100M/SPOOL, 150M/SPOOL, 300M/SPOOL and 500M/SPOOL.

NYLON MONOFILAMENT LINE

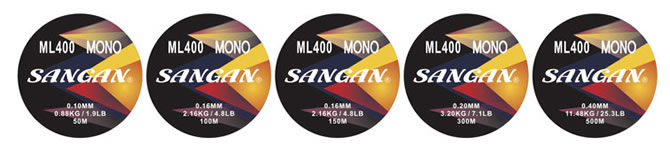

ML400 series

DIAMETER(mm)	TEST(kg)	TEST(lb)	TEST(lb)	LENGTH(m)	LENGTH(m)	LENGTH(m)	LENGTH(m)
0.074	0.44	1.0	50	100	150	300	500
0.091	0.66	1.5	50	100	150	300	500
0.105	0.88	1.9	50	100	150	300	500
0.128	1.29	2.8	50	100	150	300	500
0.148	1.72	3.8	50	100	150	300	500
0.165	2.16	4.8	50	100	150	300	500
0.181	2.59	5.7	50	100	150	300	500
0.203	3.20	7.1	50	100	150	300	500
0.234	4.09	9.0	50	100	150	300	500
0.261	5.12	11.3	50	100	150	300	500
0.286	6.01	13.2	50	100	150	300	500
0.309	7.01	15.5	50	100	150	300	500
0.331	7.83	17.3	50	100	150	300	500
0.370	9.68	21.3	50	100	150	300	500
0.405	11.48	25.3	50	100	150	300	500
0.437	13.29	29.3	50	100	150	300	500
0.467	14.99	33.0	50	100	150	300	500
0.496	16.85	37.1	50	100	150	300	500
0.523	18.47	40.7	50	100	150	300	500
0.548	19.75	43.5	50	100	150	300	500
0.573	21.55	47.5	50	100	150	300	500
0.596	23.34	51.5	50	100	150	300	500
0.619	25.14	55.4	50	100	150	300	500
0.640	26.93	59.4	50	100	150	300	500

General pack: 50M/SPOOL, 100M/SPOOL, 150M/SPOOL, 300M/SPOOL and 500M/SPOOL.

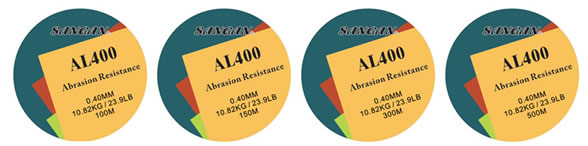

Abrasion Resistance series:AL400 series

AL400 series

DIAMETER(mm)	TEST(kg)	TEST(lb)	TEST(lb)	LENGTH(m)	LENGTH(m)	LENGTH(m)
0.074	0.40	0.9	100	150	300	500
0.091	0.60	1.3	100	150	300	500
0.105	0.80	1.8	100	150	300	500
0.128	1.20	2.6	100	150	300	500
0.148	1.60	3.5	100	150	300	500
0.165	2.00	4.4	100	150	300	500
0.181	2.40	5.3	100	150	300	500
0.203	3.00	6.6	100	150	300	500
0.234	3.78	8.3	100	150	300	500
0.261	4.68	10.3	100	150	300	500
0.286	5.61	12.4	100	150	300	500
0.309	6.55	14.4	100	150	300	500
0.331	7.39	16.3	100	150	300	500
0.370	9.02	19.9	100	150	300	500
0.405	10.82	23.9	100	150	300	500
0.437	12.54	27.6	100	150	300	500
0.467	14.14	31.2	100	150	300	500
0.496	15.90	35.1	100	150	300	500
0.523	17.42	38.4	100	150	300	500
0.548	18.63	41.1	100	150	300	500
0.573	20.33	44.8	100	150	300	500
0.596	22.02	48.5	100	150	300	500
0.619	23.72	52.3	100	150	300	500
0.640	25.41	56.0	100	150	300	500
0.700	28.00	61.7	100	150	300	500
0.750	31.5	69.4	100	150	300	500
0.800	36.00	79.4	100	150	300	500
0.843	38.00	83.8	100	150	300	500
0.905	44.00	97.0	100	150	300	500
0.950	48.00	105.8	100	150	300	500
1.050	57.00	125.7	100	150	300	500

General pack: 100M/SPOOL, 150M/SPOOL, 300M/SPOOL and 500M/SPOOL.

TAPERED SHOCK LEADERS

Tapered Leaders series
15M×5Pcs Tapered Shock Leaders

DIAMETER(mm)	TEST(kg)	TEST(lb)
0.18 - 0.45	2.2	4.9
0.20 - 0.52	2.5	5.5
0.23 - 0.52	3.4	7.5
0.26 - 0.57	4.1	9
0.30 - 0.57	5.5	12.1
0.35 - 0.68	7.1	15.7

SURF CASTING TAPERED LINE

220M Multicolor 4 Colors Surf Casting Tapered Line

DIAMETER(mm)	JAPAN SIZE	TEST(kg)	TEST(lb)
0.20 - 0.48	1.50 - 9.00	2.68	5.9
0.25 - 0.48	2.50 - 9.00	4.38	9.7
0.30 - 0.57	3.50 - 12.00	5.9	13
0.35 - 0.57	4.50 - 12.00	7.46	16.4
0.40 - 0.57	6.00 - 12.00	9.73	21.5

250M Multicolor 4 Colors Surf
Casting Tapered Line

DIAMETER(mm)	JAPAN SIZE
0.12 - 0.55	0.6 - 11
0.14 - 0.55	0.8 - 11
0.16 - 0.57	1.0 - 12
0.18 - 0.57	1.2 - 12
0.20 - 0.57	1.5 - 12
0.23 - 0.57	2.0 - 12
0.26 - 0.57	2.5 - 12
0.28 - 0.57	3.0 - 12
0.30 - 0.57	3.5 - 12
0.33 - 0.57	4.0 - 12
